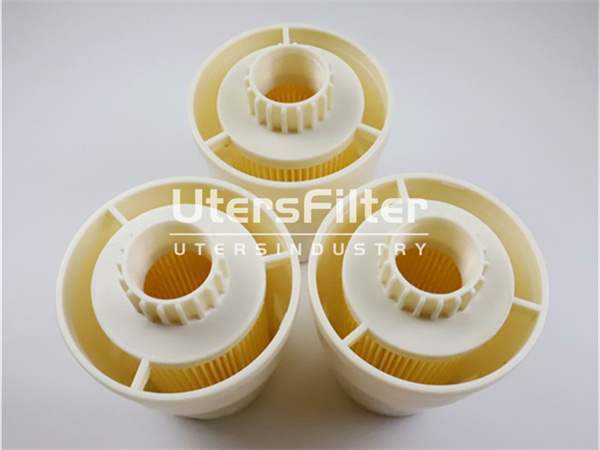

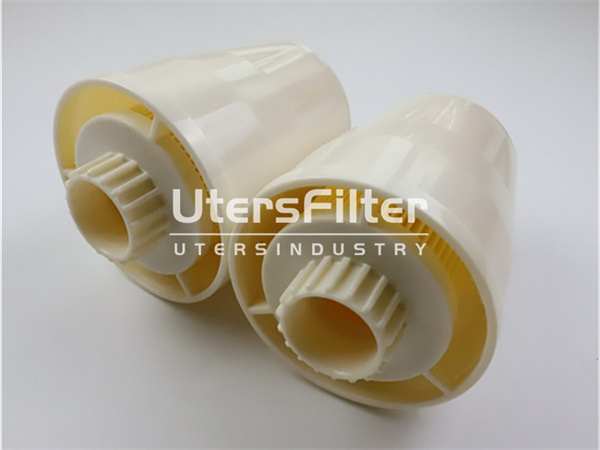

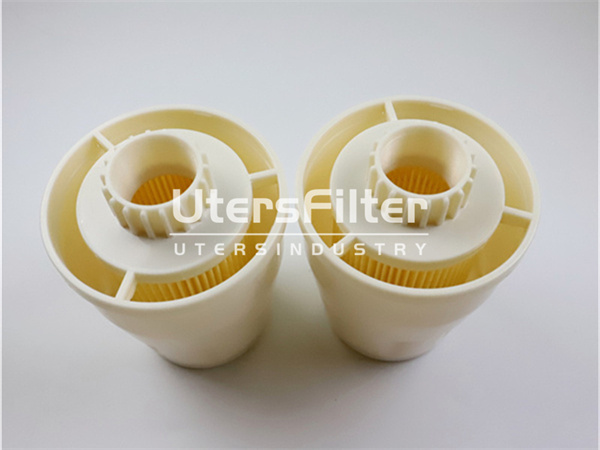

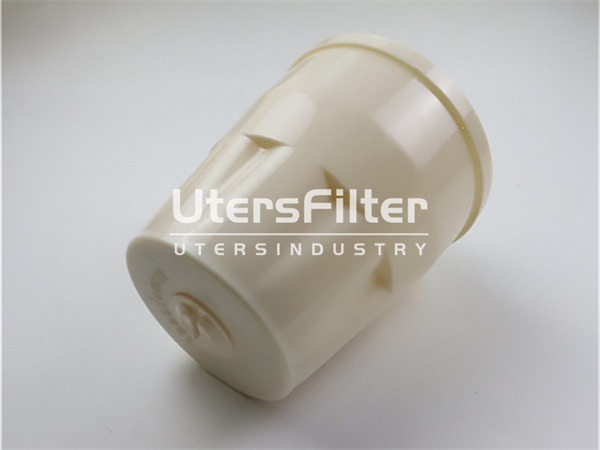

HC0293SEE5 UTERS replace of PALL filter element

summary

Uters hydraulic oil filter element is used to filter solid particles and colloidal substances in the working medium. It can effectively control the pollution degree of working medium and protect the normal operation of mechanical equipment. It is an indispensable part of the pipeline series for conveying medium.

The hydraulic oil filter element is mainly installed in the hydraulic system: oil suction circuit, pressure oil circuit, oil return pipeline, bypass and separate filtration system.

Hydraulic oil filter element is an indispensable part of the pipeline series conveying medium. It is usually installed in the filter at the inlet end of the hydraulic system to filter out metal particles and polluting impurities in the fluid medium and protect the normal operation of machinery and equipment.

The application scope of hydraulic oil filter element is very wide, covering almost all walks of life: steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, machine tool and engineering machinery, construction machinery and other fields.

performance index

DS103EA100V/-W UTERS EH oil station main pump inlet filter element

1. Filtering accuracy: 5-200um; filtering ratio: X ≥ 99.9

2. Working pressure: (max) 21MPa

3. Working medium: hydraulic oil; Lubricating oil; Industrial water and other fluid media

4. Working temperature: - 30 ℃ ~ + 110 ℃

5. Filter material: high strength stainless steel mesh; Glass fiber; Filter paper and other materials

6. Structural strength: 1.0MPa, 2.0MPa, 16.0mpa, 21.0mpa

Quality test standard

ISO 2941 filter elements - Test Method for rupture resistance of filter elements

ISO 2942 filter elements - Test Method for structural integrity of hydraulic filter elements

ISO 2943 filter cartridges - Test Method for compatibility of hydraulic filter cartridge materials with liquids

ISO 3723 filter element - end to end compliance test

ISO 3724 filter elements - Determination of fatigue characteristics

ISO 3968 filter elements - differential pressure flow characteristics

ISO 4572 filter cartridges - multiple pass method for the determination of filtration characteristics

Similar part numbers:

HC8300FKN39H HC8300FKS39H-YC11B

HC8304FCN39H HC8304FCS39H

HC8314FKN39H HC8314FCT39H

HC8904FKN26H HC8904FCS39H

HC9020FCP8H HC9020FCS8H

HC9600FCN16H HC9600FCS16H

HC9600FKS8H HC9600FKN8H

HC9600FKT13H HC9601FCT16H

HC9700FKP9Z HC9700FCP9H

HC9700FKP27Z HC9701FDP18ZYR82

HC9901E20026H
